Porous ceramic balls not only support and cover the catalyst, but also filter and eliminate the impurities.

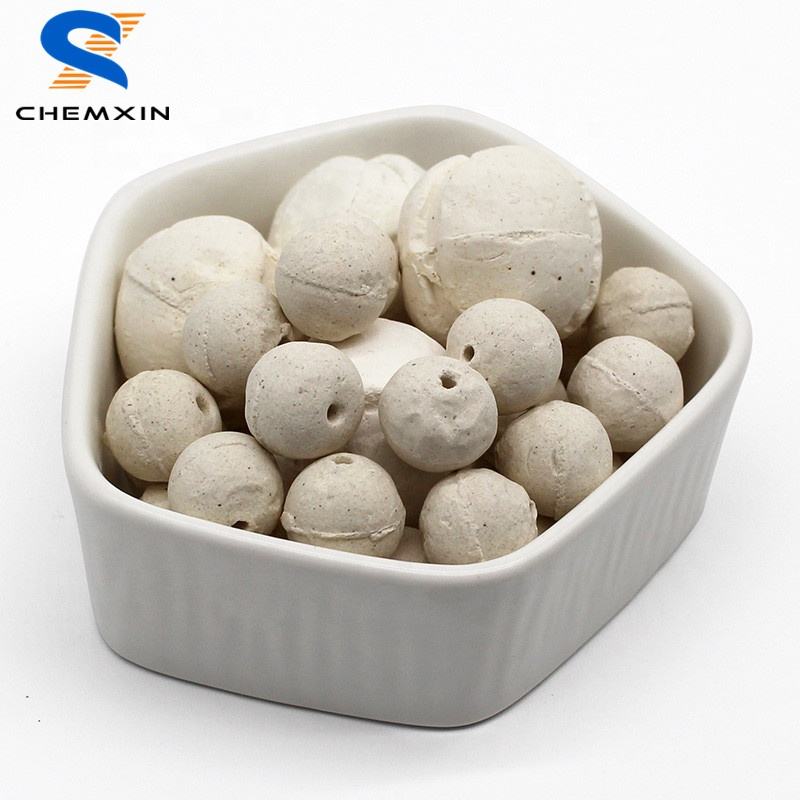

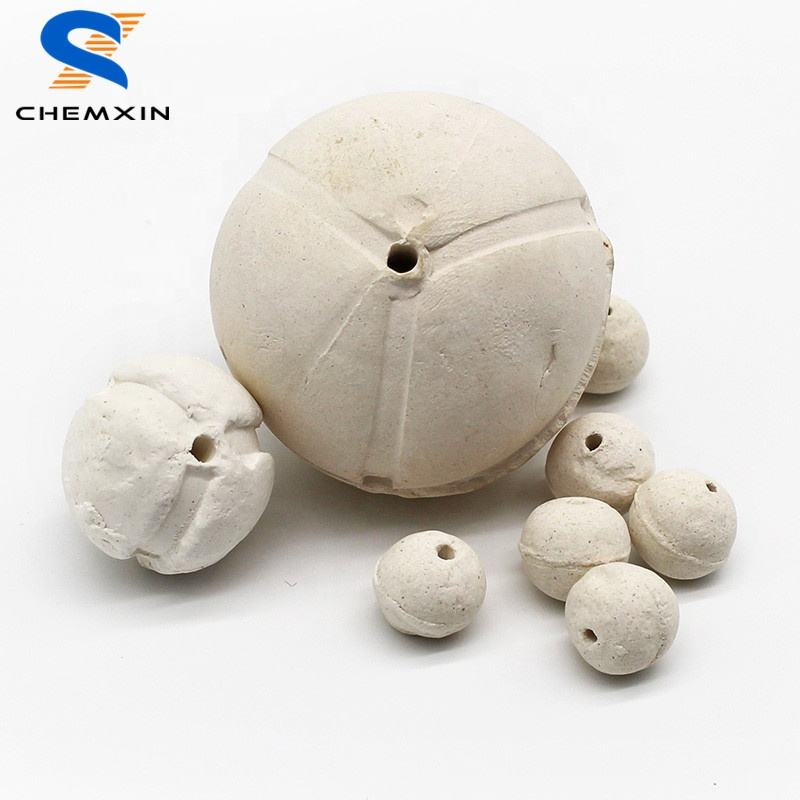

Porous ceramic balls are also called filtering balls. They are made by drilling on the inert ceramic balls. Therefore it can be used for not only supporting and covering the catalyst, but also filtering and eliminating the impurities of grain, gelatin, asphaltine, heavy metals or iron ions, etc, which is less than 25µm. When the porous balls are set on the top of the reactor, the impurities which failed to be eliminated in former process could be absorbed in the pores of the ceramic balls, thereupon protect the catalyst and prolong the operating cycle of the system.
| Type | Feldspar | Feldspar-Molai | Molai Stone | Molai-Corundum | Corundum | |
| Chemical Ingredients (%) | Al 2O3 | 20-30 | 30-45 | 45-70 | 70-90 | ≥90 |
| Al2O3 +SiO2 | ≥90 | |||||
| Fe2O3 | ≤1 | |||||
| Water Adsorption(%) | ≤5 | |||||
| Acid Resistance(%) | ≥98 | |||||
| Alkaki Resistance(%) | ≥80 | ≥82 | ≥85 | ≥90 | ≥95 | |
| Operation Temperature(°C) | ≥1300 | ≥1400 | ≥1500 | ≥1600 | ≥1700 | |
| Crushing Strength(N/pcs) | Φ6 | ≥400 | ≥420 | ≥440 | ≥480 | ≥500 |
| Φ8 | ≥480 | ≥520 | ≥600 | ≥620 | ≥650 | |
| Φ10 | ≥600 | ≥700 | ≥800 | ≥900 | ≥1000 | |
| Φ13 | ≥1000 | ≥1100 | ≥1300 | ≥1500 | ≥1800 | |
| Φ16 | ≥1500 | ≥1600 | ≥1800 | ≥2300 | ≥2600 | |
| Φ20 | ≥1800 | ≥2000 | ≥2300 | ≥2800 | ≥3200 | |
| Φ25 | ≥2500 | ≥2800 | ≥3200 | ≥3600 | ≥4000 | |
| Φ30 | ≥3000 | ≥3200 | ≥3500 | ≥4000 | ≥4500 | |
| Φ38 | ≥4000 | ≥4500 | ≥5000 | ≥5500 | ≥6000 | |
| Φ50 | ≥6000 | ≥6500 | ≥7000 | ≥8500 | ≥10000 | |
| Φ60 | ≥8000 | ≥8500 | ≥9000 | ≥10000 | ≥12000 | |
| Φ75 | ≥10000 | ≥11000 | ≥12000 | ≥14000 | ≥15000 | |
| Bulk Density (kg/m3) | 1100-1200 | 1200-1300 | 1300-1400 | 1400-1550 | ≥1550 | |
| Diameter | 6 8 10 | 13 16 20 25 | 30 38 50 | 60 75 | ||
| Tolerance of diameter(mm) | ±1.0 | ±1.5 | ±2.0 | ±3.0 | ||
| Pore diameter(mm) | 2~3 | 3~5 | 5~8 | 8~10 | ||
Application:
It is developed on the basis of inert ceramic ball. It has an adequate mechanical strength, good chemical and thermal stability as the normal inert ceramic ball, further more, it has larger surface area and free void which directly make the dispersion and flux of the fluids increased, and bring down the resistance of the system resulting from the perforated holes on the ball. As a new efficient support and covering material of catalyst, it has been widely used in oil refinery, chemical, fertilizer, natural gas and environment protection industries since put into market .
