Color: faint yellow.Chemical molecular formula:mSiO2.nAl2O3.XH2O.
Chemically stable,flame-resisting.Insoluble in any solvent except strong alkali or hydroelectric acid. In comparison with fine-pored silica gel ,the adsorption capacity of HY-H silica alumina gel is quite the same when used at low relative humidity ,(e.g.RH=10%,RH=20%),while its adsorption capacity at high humidity is 6—10%higher than that of fine-ported silica gel. Its thermal stability is over 150℃ higher than that of fine-pored silica gel (200 ℃).Ideally suited for use as absorbent and variable-temperature absorbent.
Application
Mainly used of separating light hydrocarbon from natural gas, the product can reduce dew point of hydrocarbon to produce natural gas gasoline , drying natural gas at the same time .Add 20% (wt) HY-W as the protective layer if water drip exits in separation system. In addition,it can be used as common dryer ,catalyst and its carrier ,variable –pressure adsorption separation agent (PSA). As variable-temperature adsorption separation agent (TSA) at higher temperature, it performs especially suitable.
Technical Parameter:

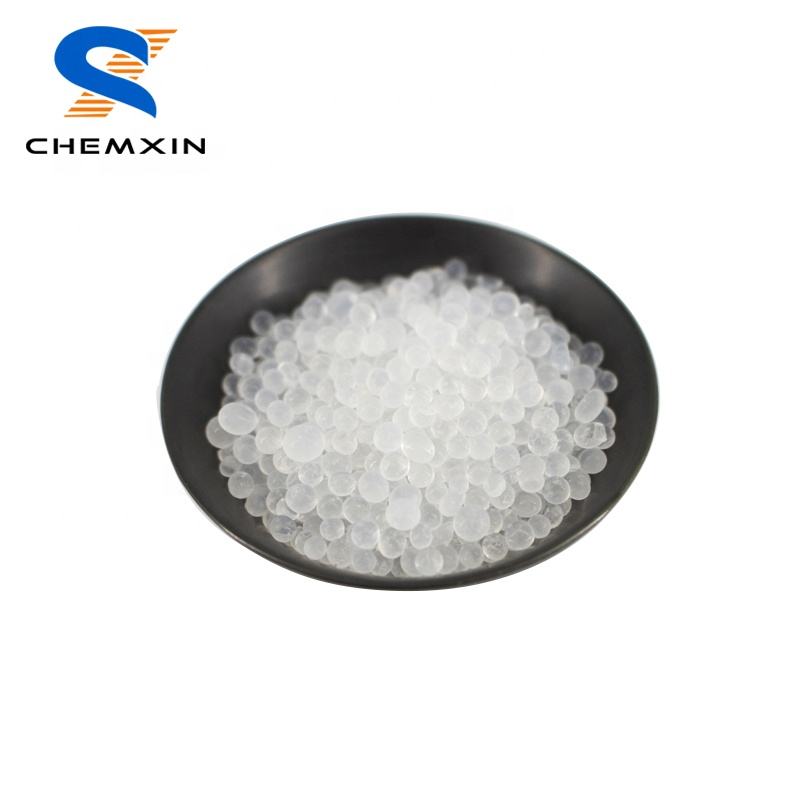

| Appearance | transparent or translucent glass-like pellet or lump | |
| Application | Mainly used for drying water-proof,can also be used as catalyst carriers, adsorbents, separators and variable-pressure adsorbents, etc. | |
| ITEM | Typical values | |
| Adsorption capacity | RH=20%,%≥ | 11.2 |
| RH=50%,%≥ | 29.2 | |
| RH=90%,%≥ | 37.6 | |
| Loss on heating,% ≤ | 1 | |
| thermal conductivity KJ/m.hr.°c | 0.63 | |
| average pore diameter nm | 2.0-3.0 | |
| pore volume ml/g | 0.35-0.45 | |
| Specific surface area m²/g | 650-800 | |
| specific heat KJ/kg.°c | 0.92 | |
| PH value | 4 | |
| Specific resistance,Ω .cm | 5630 | |
| Silica % ≥ | 98.5 | |
| ratio of qualified spherical granules,% ≥ | 90 | |
| Bulk density, g/L | 784 | |
| Sizes:0.5-1.5mm, 0.5-1mm, 2-4mm, 2-5mm, 4-8mm | ||
| [Packaging] 15kg per compound bag or 300 kg. Per container bag. | ||
| [Note] The moisture content, packing and size may be customized per specific requirements. | ||
