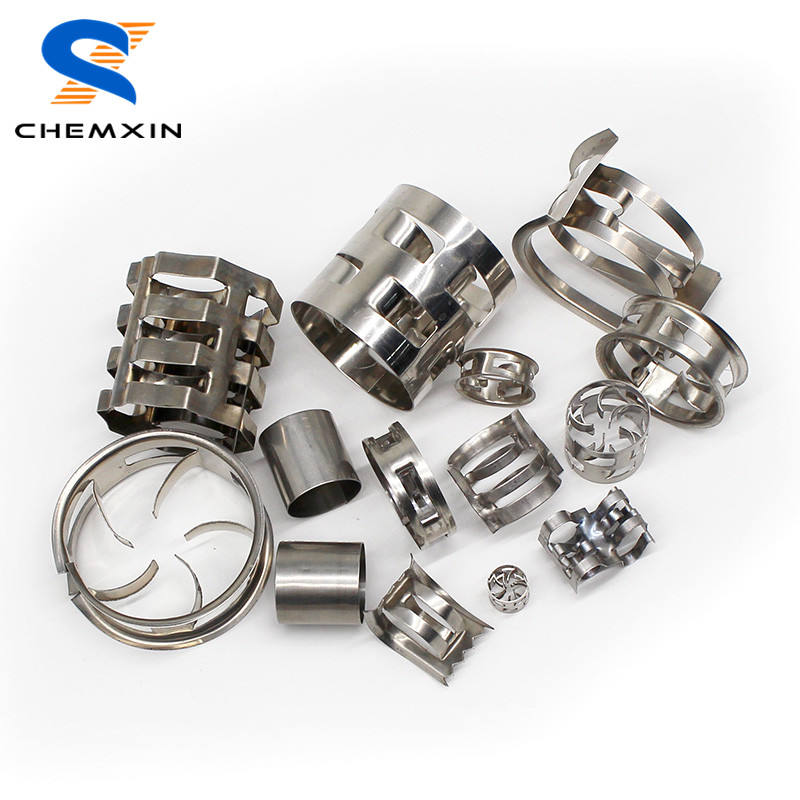

Stainless steel metal random tower packing media 25mm 38mm 50mm 76mm metal pall ring for stripping
 |  |
Metal Pall ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc...
Technical Parameter:
| Model | Pall Ring | ||||||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | ||||||
| Preferred Sizes | (mm) | 16*16*0.3 | 25*25*0.3 | 38*38*0.4 | 50*50*0.5 | 76*76*0.6 | 89*89*0.7 |
| Number | per m3 | 201000 | 51000 | 15000 | 6500 | 1830 | 1160 |
| Bulk density | kg/m3 | 345 | 214 | 193 | 182 | 142 | 145 |
| Surface area | m2/m3 | 346 | 212 | 145 | 106 | 69 | 62 |
| Free volume | % | 95.5 | 96.2 | 96.7 | 97.5 | 97.4 | 97.1 |
| Typical Application | Absorption, scrubbing and stripping services | ||||||
| Package | Jumbo bag, Carton box | ||||||
| Warranty | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | ||||||
| b) Offer lifetime consultation on problems occurred | |||||||
Advantage
1.A versatile packing used in distillation, absorption and other operations.
2.Used in both deep vacuum and high pressure towers.
3.Chemxin metal pall ring is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
