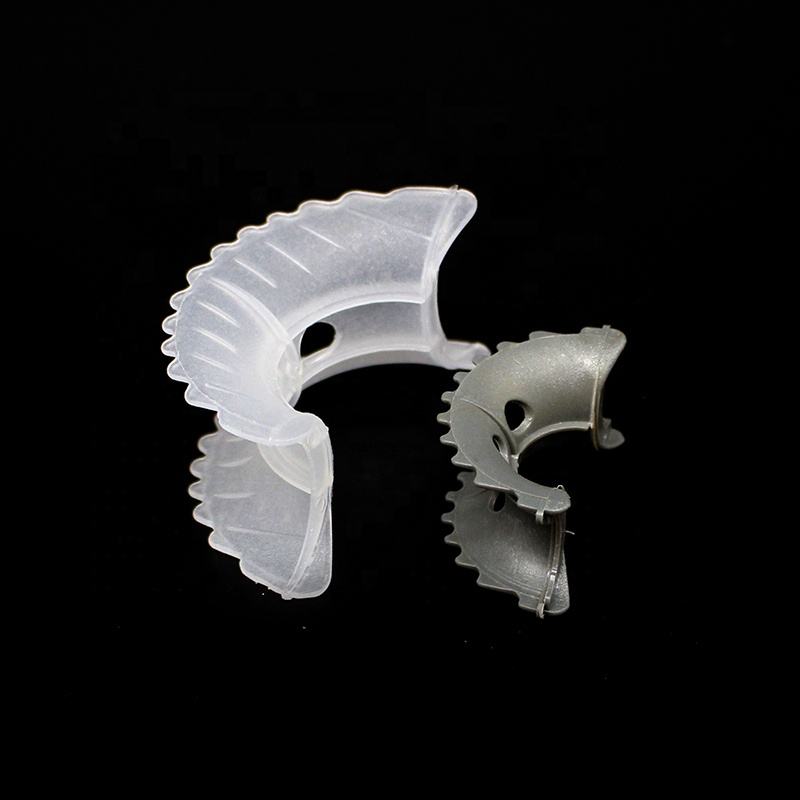

chemical random tower packing 25mm 38mm 50mm 76mm PP PE PVC CPVC plastic intalox saddle ring
Plastic intalox saddle is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Technical Parameter:
| Model | Plastic Intalox Saddle Ring | ||||
| Material | PP,RPP,PE,PVC,CPVC,PVDF, etc. | ||||
| Size | mm | 25*12.5*1.2 | 38*19*1.2 | 50*25*1.5 | 76*38*2.6 |
| Bulk density | kg/m3 | 102 | 63 | 75.2 | 59.2 |
| Number | per m3 | 97680 | 25200 | 9400 | 3700 |
| Surface | m2/m3 | 288 | 265 | 250 | 200 |
| Free Volume | % | 84.7 | 95 | 96 | 97 |
| F factor | m-1 | 473 | 405 | 332 | 289 |
| Typical Application | Absorption, scrubbing and stripping services | ||||
Advantage
1) High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
2) Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrade.
chemical random tower packing 25mm 38mm 50mm 76mm PP PE PVC CPVC plastic intalox saddle ring
Plastic intalox saddle is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Technical Parameter:
| Model | Plastic Intalox Saddle Ring | ||||
| Material | PP,RPP,PE,PVC,CPVC,PVDF, etc. | ||||
| Size | mm | 25*12.5*1.2 | 38*19*1.2 | 50*25*1.5 | 76*38*2.6 |
| Bulk density | kg/m3 | 102 | 63 | 75.2 | 59.2 |
| Number | per m3 | 97680 | 25200 | 9400 | 3700 |
| Surface | m2/m3 | 288 | 265 | 250 | 200 |
| Free Volume | % | 84.7 | 95 | 96 | 97 |
| F factor | m-1 | 473 | 405 | 332 | 289 |
| Typical Application | Absorption, scrubbing and stripping services | ||||
Advantage
1) High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
2) Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrade.
